Use Nexus data replay feature to run DPAT with SmarTest 8#

About this tutorial#

Nexus Data Replay is a special working mode in Nexus. By this mode, you can run the DPAT App by using the “data_replay” command line, which is independent of SmarTest. Data replay is enabled by changing the Nexus working mode configuration from “production” to “replay”. You must specify a STDF file as the data source in the command.

In this tutorial you will learn how to:

  • Run DPAT application with Nexus in data replay mode.

Compatibility#

  • SmarTest 8 / Nexus 3.1.0 / Edge 3.4.0-prod

Before you begin#

You need to request access to the ACS Container Hub, and create your own user account and project.

Ensure one of the following is completed:

Procedure#

Note: The ‘adv-dpat’ project we are using below is for demonstration purposes. You will need to replace it with your own project accordingly.

Generate the STDF file(~/stdf/smt8_dpat-xxxxxxxxxxxxxx) by running DPAT, you can use one of the following methods

Note that:

Before running test program, you should enable stdf file output in SMT8:

  • Create directory for stdf files

    mkdir ~/stdf

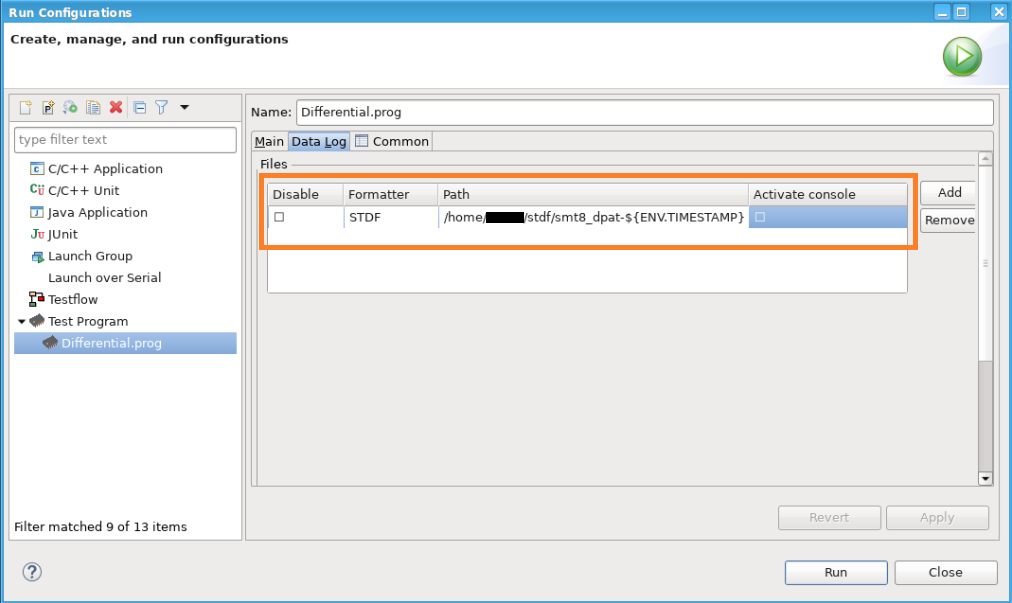

  • Config STDF datalog output file /home/ChangeToVmUsername/stdf/smt8_dpat-${ENV.TIMESTAMP} in [Run] -> [Run Configurations…] of EWC menu

    ../../_images/run-configuration.png

Run DPAT application with Nexus in replay mode#

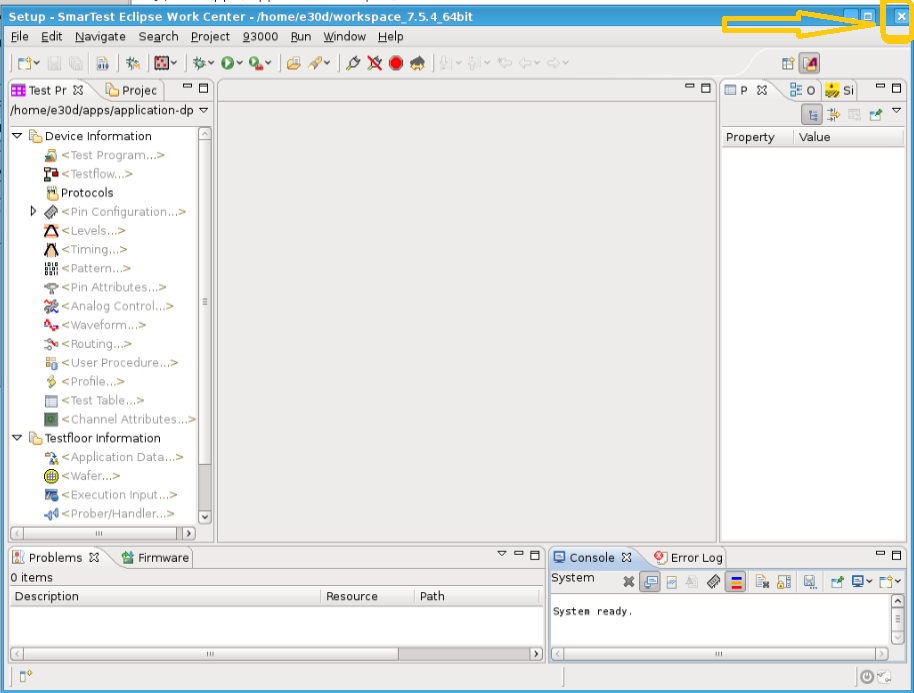

  • Click the “x” in the top right corner to close SmarTest.

    ../../_images/close_smt_x.png

  • Change asc_nexus service to data replay mode

    sudo sed -i 's/production/replay/g' /opt/acs/nexus/conf/acs_nexus.ini
sudo systemctl restart acs_nexus

  • Start DPAT docker image manually.(Replace edge_ip, tag, user and password in the command line with your own values)

    Pull image:

    sudo /opt/acs/nexus/bin/EdgeControlTool pull -edge_ip ChangeToYourEdgeIp -registry registry.advantest.com -name adv-dpat/adv-dpat-v1 -tag ChangeToYourDockerTag -user 'xxxxx.xx@xxxxxxxxx.com' -passwd ChangeToYourContainerHubPassword -operate_time 300 -host_ip ChangeToHostControllerIp -container_name dpat-app

    Start container:

    sudo /opt/acs/nexus/bin/EdgeControlTool start -edge_ip ChangeToYourEdgeIp -registry registry.advantest.com -name adv-dpat/adv-dpat-v1 -tag ChangeToYourDockerTag -user 'xxxxx.xx@xxxxxxxxx.com' -passwd ChangeToYourContainerHubPassword -operate_time 300 -host_ip ChangeToHostControllerIp -container_name dpat-app

  • Execute the Nexus data replay command.

    Note: Typically, Nexus automatically adds the line “EdgeServerIp advantestcell.local” to the “/etc/hosts” file. If you haven’t launched Nexus yet, please make sure to manually add this entry before executing the data_replay command.

    sudo /opt/acs/nexus/bin/data_replay -i ~/stdf/smt8_dpat-xxxxxxxxxxxxxx

    Output:

    Starting to parse stdf and send data......
End to send data, wait for process quit.
Process has Done, quit.

    The STDF file “smt8_dpat-xxxxxxxxxxxxxx” is the result from the first run of DPAT in Nexus production mode.

    You can upload other STDF file from your computer and execute data_replay for it.

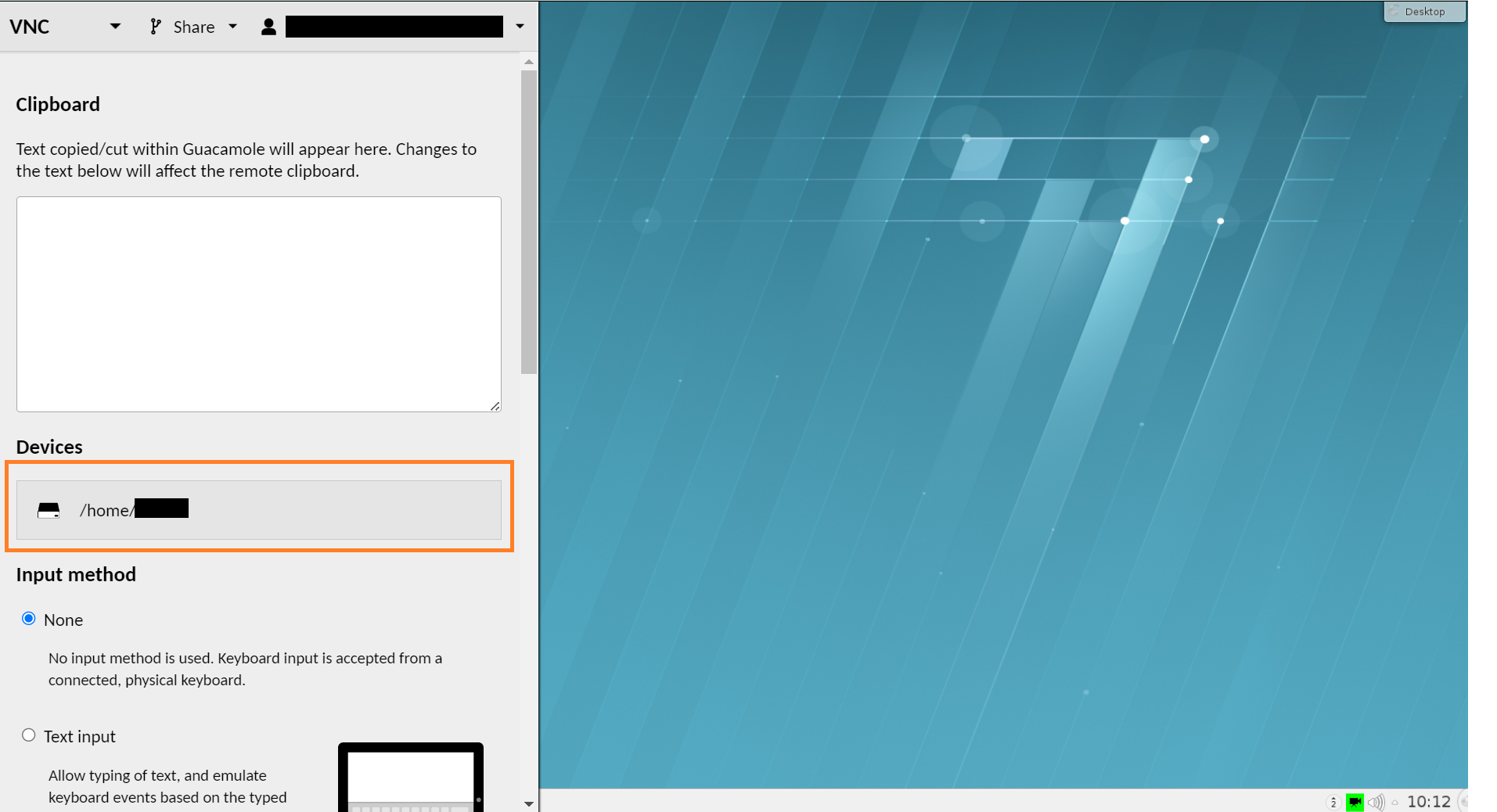

    By pressing the “Ctrl+Alt+Shift” keys on the VNC/SSH webpage, you can open the file upload dialog then upload the STDF file.

    ../../_images/instruction14.png

  • Verify the result by docker log on Edge Server

    You can view the log output by executing the following commands:

    cd ~/apps/application-dpat-v3.1.0/docker_logs/
make clean
make
cd ~/apps/application-dpat-v3.1.0/
sh get_edge_logs.sh ChangeToEdgeIp ChangeToContainerName

  • When you have completed the data replay, stop the container and delete the ACS Edge image by executing the commands below.

    sudo /opt/acs/nexus/bin/EdgeControlTool stop -edge_ip ChangeToYourEdgeIp -registry registry.advantest.com -name adv-dpat/adv-dpat-v1 -tag ChangeToYourDockerTag -user 'xxxxx.xx@xxxxxxxxx.com' -passwd ChangeToYourContainerHubPassword -operate_time 300 -host_ip ChangeToHostControllerIp -container_name dpat-app

    sudo /opt/acs/nexus/bin/EdgeControlTool delete -edge_ip ChangeToYourEdgeIp -registry registry.advantest.com -name adv-dpat/adv-dpat-v1 -tag ChangeToYourDockerTag -user 'xxxxx.xx@xxxxxxxxx.com' -passwd ChangeToYourContainerHubPassword -operate_time 300 -host_ip ChangeToHostControllerIp -container_name dpat-app

Run DPAT application in replay mode with JupyterLab#

Compatibility#

  • SmarTest 8 / Nexus 3.1.0 / Edge 3.4.0-prod

Procedure#

Note: The ‘adv-dpat’ project we are using below is for demonstration purposes. You will need to replace it with your own project accordingly.

  • Click the “x” in the top right corner to close SmarTest.

    ../../_images/close_smt_x.png

  • Change the asc_nexus service to data replay mode

    sudo sed -i 's/production/replay/g' /opt/acs/nexus/conf/acs_nexus.ini
sudo systemctl restart acs_nexus

  • Run the DPAT app

    Download artifacts

    Please execute the following commands on the Ubuntu Server

    cd ~
rm -rf jupyter_lab_environment
curl http://10.44.5.139/jupyter-dpat/jupyter_lab_environment_3.1.0.tar.gz -O
tar -zxf ./jupyter_lab_environment_3.1.0.tar.gz
mv -f jupyter_lab_environment_3.1.0 jupyter_lab_environment

    Build image

    Please execute the following commands on the Ubuntu Server

    docker login registry.advantest.com --username Your_Email --password Your_Password
docker build ~/jupyter_lab_environment/rd-app_dpat_py/ --tag=registry.advantest.com/adv-dpat/adv-dpat-v1:Your_Image_Tag

    Push image

    Please execute the following commands on the Ubuntu Server

    docker push registry.advantest.com/adv-dpat/adv-dpat-v1:Your_Image_Tag

    Start the container running the DPAT app

    Please execute the following commands on the Host Controller

    curl http://10.44.5.139/edgesdk/edge3.0-prod.tar.gz -O
tar -zxf edge3.0-prod.tar.gz
cd edge3.0-prod
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:./lib
./start_container "registry.advantest.com" "ChangeToYourEmail" "ChangeToYourSecret" "adv-dpat/adv-dpat-v1" "ChangeToYourImageTag" "dpat-app" "9990:8888/tcp" "ChangeToYourEdgeServerIp" "ChangeToYourHostControllerIp"

    Start JupyterLab

    Please execute the following commands on the Ubuntu Server

    echo >~/jupyter_remote_kernel.py
echo c.ContentsManager.allow_hidden = True >>~/jupyter_remote_kernel.py
echo c.FileContentsManager.allow_hidden = True >>~/jupyter_remote_kernel.py
echo c.GatewayClient.url = "'http://Edge_Server_Ip:9990'" >>~/jupyter_remote_kernel.py
echo c.GatewayClient.validate_cert = False >>~/jupyter_remote_kernel.py

    jupyter lab stop 8888
jupyter lab --config=~/jupyter_remote_kernel.py --port=8888 ~/jupyter_lab_environment/notebook/dpat-example.ipynb

    Wait for a while, and the browser will start automatically;

    Run all cells

    Open dpat-example.ipynb and run all cells

    ../../_images/run_cells.png

  • Execute Nexus data replay command

    Note: Typically, Nexus automatically adds the line “EdgeServerIp advantestcell.local” to the “/etc/hosts” file. If you haven’t launched Nexus yet, please make sure to manually add this entry before executing the data_replay command.

    sudo /opt/acs/nexus/bin/data_replay -i ~/stdf/smt8_dpat-xxxxxxxxxxxxxx

    Output:

    Starting to parse stdf and send data......
End to send data, wait for process quit.
Process has Done, quit.

  • Stop the container

    On the Host Controller, run the following commands to delete the container:

    sudo /opt/acs/nexus/bin/EdgeControlTool stop -edge_ip ChangeToYourEdgeIp -registry registry.advantest.com -name adv-dpat/adv-dpat-v1 -tag ChangeToYourDockerTag -user 'xxxxx.xx@xxxxxxxxx.com' -passwd ChangeToYourContainerHubPassword -operate_time 300 -host_ip ChangeToHostControllerIp -container_name dpat-app

    sudo /opt/acs/nexus/bin/EdgeControlTool delete -edge_ip ChangeToYourEdgeIp -registry registry.advantest.com -name adv-dpat/adv-dpat-v1 -tag ChangeToYourDockerTag -user 'xxxxx.xx@xxxxxxxxx.com' -passwd ChangeToYourContainerHubPassword -operate_time 300 -host_ip ChangeToHostControllerIp -container_name dpat-app
